Intro to Laser cutting files on the web.

If you would like to have all the metalwork associated with the type of Paraset that comes in a metal box laser cut then here are the files you will need to give to your friendly laser cutting company.

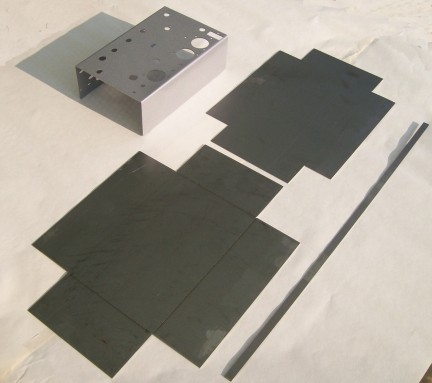

There are four parts that fit together to form the lid, box and chassis. These files are provided in 2000.DWG and 2007.DWG type. You will need to check with the laser cutting company you chose which type of file they like to use.

We have found that the best way to give these files to the company is to download them and then send them as an attached to an email to the company - but of course your choice of company may differ.

If you would like to make a similar mains power supply to the original then you can also have this metalwork laser cut as there are two files associated with the power supply that you can also download.

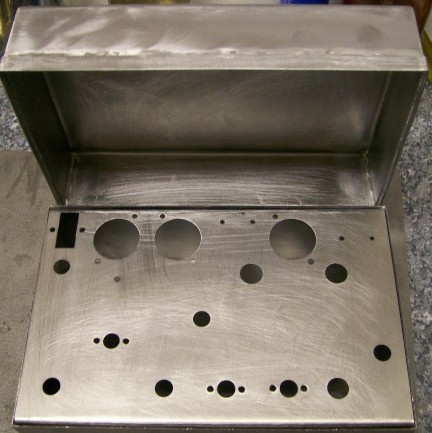

If you look elsewhere on this web site you can see photographs of parasets and a mains power supply where the metalwork has been laser cut. Look for those built by G3YVF. Look in the list of suppliers and you can see the laser cutting company we use here.

Do you need a flat pack or folded pack of the metal work?

If you have no access to a laser cutter and would like a flat pack, or a folded pack then please email directly at:-

gw.woo@btinternet.com

and he will reply as the possibility of supplying such a pack to you.
